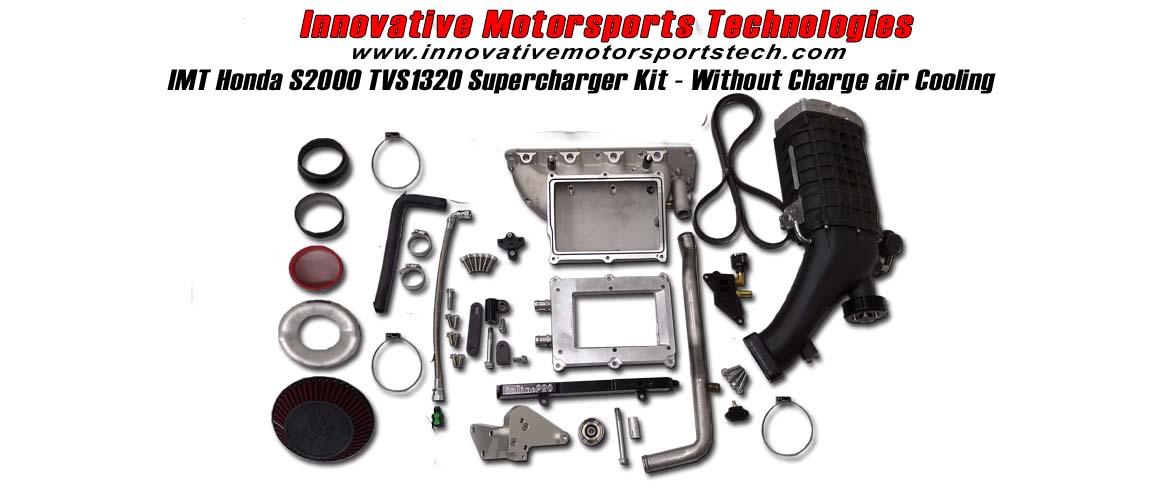

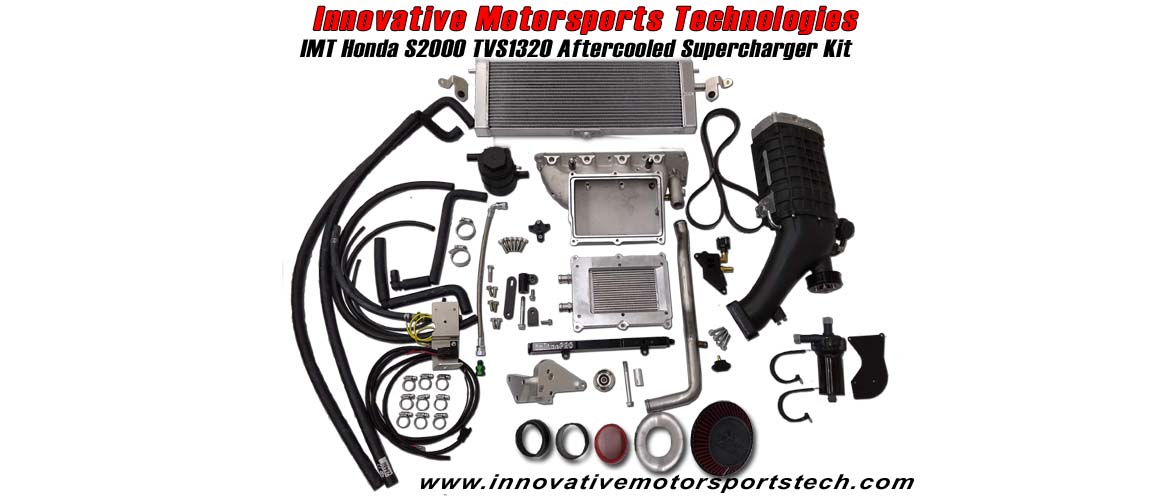

Honda S2000 TVS Supercharger Kit

/// Honda S2000 TVS Supercharger Kit Features

Build around the TVS1320 supercharger rotor set from Eaton Corp.

2. 356-T6 cast aluminum intake manifold

3. 356-T6 cast aluminum TVS1320 Front Inlet Front Drive (FIFD)

4. 356-T6 cast aluminum upper radiator hose neck

5. 304 Stainless CNC mandrel bent upper radiator tube

6. Billet Aluminum high flow fuel rail with -6AN fittings

7. Braided PTFE/SS fuel feed line with -6AN fittings

8. Super high density CAC (aftercooler) core inside manifold

9. Bosch CAC pump with specific s2000 bolt on mount

10. Complete PNP pump wiring harness with fuse and relay

11. Rotomolded coolant reservoir with laser cut and CNC formed aluminum mount

12. Application specific 6061 T6 CNC throttle body adapters. OEM F20-F22 to 74mm, DBW to 70mm

Only the high quality parts are used

14. Gates 70mm idler pulley

15. 6 Rib Gates belt

16. 6061-T6 CNC machined tensioner/alternator mount.

17. 6061-T6 CNC machined fuel pressure regulator locator

18. 6061-T6 CNC machined remote mount for idle air control valve

19. 6061-T6 CNC machined blower pulleys 2.5”-3.6”

20. 6061-T6 CNC machined intake manifold lower brace

21. 6061-T6 CNC machined MAP sensor adapter

22. 3.5” intake tube with silicone adapters

23. High flow air filter with velocity stack

24. All hoses and clamps

25. All hardware
